High deep recessed COB Downlight
7W / 12W / 18W Star Model High deep recessed COB Downlight
The Star COB Series is a premium range of high-efficiency recessed COB downlights designed for superior lighting output, elegant aesthetics, and enhanced thermal performance. Available in White, Black, and Shining Black finishes, it provides versatile options for modern architectural lighting needs.
Technical Specifications:
* LED Type: Chip-on-Board (COB)
* Wattage: 7W / 9W / 12W / 15W / 18W (variants Wattages available)
* Input Voltage: AC 85–265V, 50/60Hz
* Luminous Efficacy: 100–120 lm/W
* Color Temperature (CCT): 3000K (Warm White), 4000K (Neutral White), 6500K (Cool White) , 3in1 ( 3000K ~ 6500K )
* Beam Angle: 38°
* CRI (Color Rendering Index): >80 & > 90
* Housing Material: Aluminum body with powder-coated finish (available in black & white)

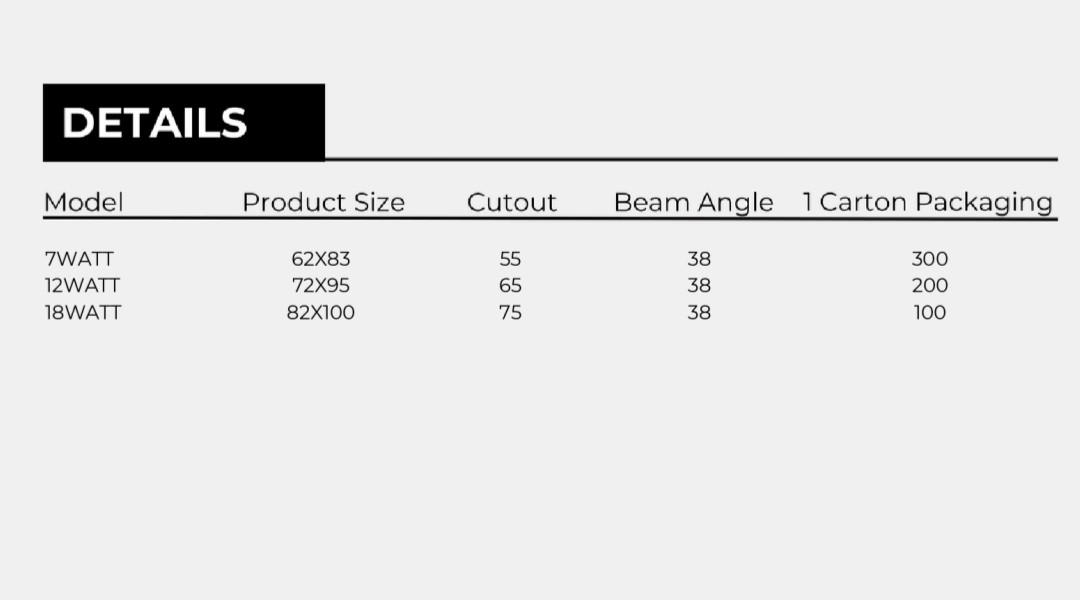

* Cutout Size: Ø45mm (7W ) , Ø65mm (12W ) & Ø75mm (18W )
* IP Rating: IP20 (Indoor Use)
* Driver Type:
1) Isolated constant current LED driver ( HPF )
2) Driver option Tubale & Dimmable BLE, Wifi , RF , Dali
* Thermal Management: Integrated heat sink for efficient cooling
* Lifespan: >30,000 hours
* Mounting Type: Recessed (spring clip mechanism)

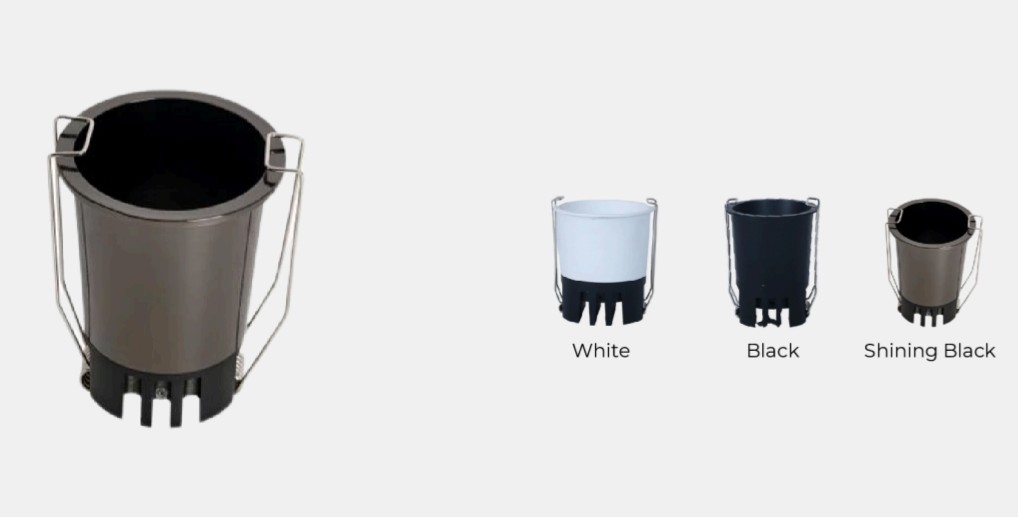

Color Finish Options:
* White: Minimal and modern finish for bright, open ceilings
* Black: Sleek and professional aesthetic for focused zones
* Shining Black: Glossy premium look, ideal for luxury interiors
Applications:
* Residential ceiling lighting
* Retail and showroom lighting
* Hospitality: Hotels, restaurants, and lounges
* Office and commercial spaces
* Galleries and museums (accent lighting)
* Corridor and passage lighting
* Modular furniture or display cabinets
